Product Description

>>Grinding Mill Introduction

HGM ultrafine grinding mill also called calcite superfine grinding machine, limestone superfine grinding machine, calcium carbonate superfine grinding machine, talc superfine grinding machine, barite superfine grinding machine, gypsum superfine grinding machine, marble superfine grinding machine, feldspar superfine grinding machine, fluorite superfine grinding machine.

>>Applications Of HGM Ultrafine Mill

HGM ultrafine mill is mainly applicable to the superfine powder processing of non flammable and explosive brittle materials with medium and low hardness and Mohs hardness ≤ 6, such as calcite, chalk, limestone, carbon black, kaolin Bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate rock, potassium ore, pumice and other more than 100 kinds of materials.

ultrafine mill processing materials — Ultrafine Mill Processing Materials

The particle size of the finished fine powder is arbitrarily adjusted between 325-3000 mesh, and the output can reach 0.4-45 tons per hour.

>>Equipment composition

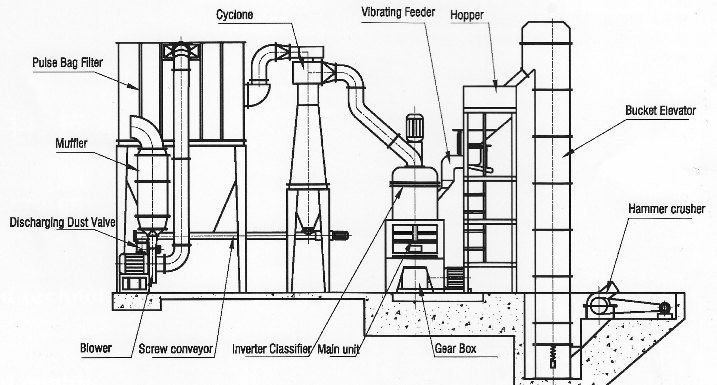

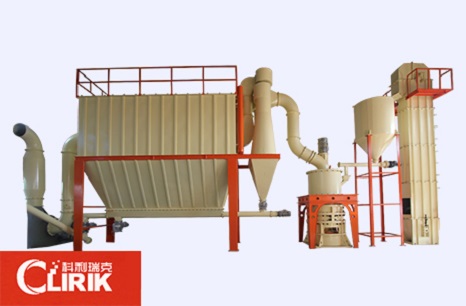

The HGM grinding mill production line usually consists of hammer crusher, bucket elevator, storage bin, vibrating feeder, micro pulverizer host, frequency conversion classifier, double cyclone powder collector, pulse dust removal system, high-pressure fan, air compressor, electrical control system, etc.

>>Working principle

The large pieces of materials are crushed by the hammer crusher into the feed particle size (about 1cm) suitable for the work of HGM ultra-fine grinding mill.
Then the fineness suitable for the production requirements is achieved by adjusting the rotating speed of HGM ultrafine mill analyzer.
They are packed into bags manually.
Automatic micro powder packers and different types of HGM ultrafine grinding mill can also be configured as required.

>>Parameters of HGM ultrafine grinding mill

Model	HGM80	HGM80A	HGM90L	HGM100L-Ⅱ	HGM100P	HGM125L	HGM1680L
Ring Diameter(mm)	800	800	900	1000	1000	1250	1680
Ring Number (PCS)	3	3	4	4	4	4	4
Input Size (mm)	≤10	≤10	≤10	≤15	≤15	≤20	≤20
Output Size (mesh)	150-3000	150-3000	150-3000	150-3000	150-3000	150-3000	150-3000
Capacity (t/h)	0.5-5.5	0.5-5.5	0.8-6.5	1.2-10	1.2-11	2.5-20	5-45
Outlet Size LWH (mm)	860541396050	1045433936626	1173539527525	1450736337562	1436242007562	1926144068591	2506754149007
Main Motor Power (kw)	75	75	55*2	132/75*2	132/75*2	185	315

HGM grinding mill specification
